Ametek PT-1088 Boiler Gauges

Ametek Gauges from Automation Service

Ametek - U.S. Gauge

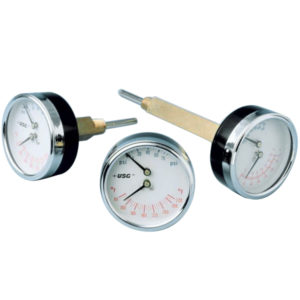

PT-1088 Boiler Gauges

Gauges

Description - The PT-1088 Series boiler gauges are designed for low cost, reliable pressure and temperature measurement in a wide range of applications.

These utility gauges are specially constructed to withstand conditions normally encountered in domestic hot water heating systems. The 2-1/2” gauge size is ideal for installations where mounting space is limited.

0-75 psi pressure range.

Temperature ranges from 60ºF to 320ºF; temperature accuracy is rated to ±3% of span.

Series PT-1088 gauges are constructed with a brass socket connection and movement.

Specifications

DIAL SIZE: 2-1/2”, 3-1/2”
CASE: 2-1/2”: Black paint
RING/WINDOW: 2-1/2”: Polycarbonate window with chrome plated steel ring
DIAL: Steel, white background with black markings
CONNECTIONS: 2-1/2”: 1/4-18 NPT CBM
TEMPERATURE ELEMENT: Helical bimetallic element enclosed in a brass bulb
SOCKET: Brass
RANGE: 60ºF to 320ºF
ACCURACY:
- Pressure: ±3-2-3% of span (Grade B)
- Temperature: ±3% of span
SIZE AND RANGES: 1/4-18 CBM: 2-1/2”, 75 psi (500 kPa) and 60ºF to 320ºF (20ºC to 160ºC)

Resources

Quote Information

Please fill out the form below and an Automation Service representative will contact you within the hour. All fields are mandatory unless labeled optional.

Delivery

All remanufactured products:

2-3 Weeks Standard Delivery
2-5 Days Expedited Delivery
Need it sooner? call us today at 1-800-325-4808

Ametek®

– U.S. Gauge products:

4-8 weeks

Rotork® electric actuators

Please contact us for delivery

Warranty

All remanufactured products are covered by our 2 year service warranty. Please click here to view full warranty.

Ametek® – U.S. Gauge Products are covered by the original manufacturer’s warranty. Please click here for warranty information.

Rotork® Electric Actuators – please contact us for warranty information.

New Foxboro® products are covered by a 1 year service warranty by the original manufacturer.

Related Products

Ametek - U.S. Gauge

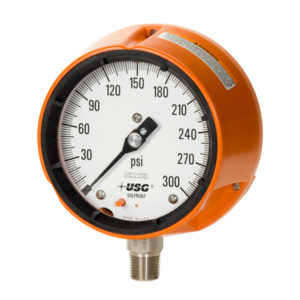

Process Gauges

Gauges

View Detail

Ametek - U.S. Gauge

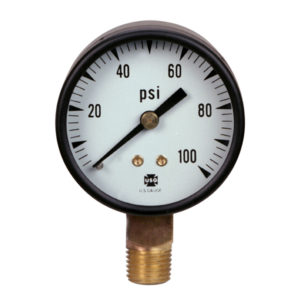

General Equipment Gauges

Gauges

View Detail

Ametek - U.S. Gauge

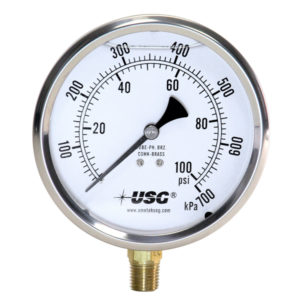

Liquid Fillable Gauges

Gauges

View Detail

Ametek - U.S. Gauge

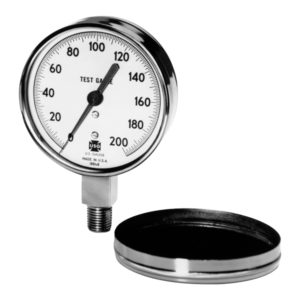

Test Gauges
