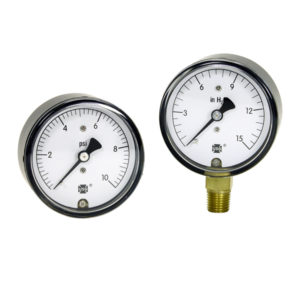

P-733 / P-734 Low Pressure Diaphragm Gauges

Ametek - U.S. Gauge

P-733 / P-734 Low Pressure Diaphragm Gauges

Gauges

Description -

P-733 are high quality diaphragm gauges that feature rugged construction with high sensitivity.  They are ideally suited and designed for pressure measurements below 15 psi.


P-734 gauges feature a highly sensitive diaphragm for extremely low positive or negative pressure applications.  Gauges are housed in a rugged steel case with screw-in, acrylic window. The low mount  connection is 1/4-18 NPT, brass.

Specifications
  • P-733
  • SIZE: 2-1/2”
  • RANGES:
    0 to 15, 35, 60, 100, 200, in H2O
    0 to 20, 32, 36 oz
    0 to 5, 10 psi
    Dual Scale: 0 to 20 oz./35 in H2O
  • ACCURACY:±3-2-3% of span
  • CASE: Steel, black corrosion-resistant paint
  • DIAL: Steel, white background with black markings
  • POINTER: Aluminum, black finish with adjustment feature
  • WINDOW: One-piece threaded acrylic
  • MOVEMENT: Brass
  • DIAPHRAGM CAPSULE: Copper alloy
  • CONNECTION: Brass 1/4-18 center-back male (CBM)



  • P-734
  • SIZE: 2-1/2”
  • RANGES:
    0 to 15, 35, 60, 100, 200, in H2O
    0 to 20, 32, 36 oz
    0 to 5, 10 psi
    Dual Scale: 0 to 20 oz./35 in H2O
  • ACCURACY: ±3-2-3% of span
  • CASE: Steel, black corrosion-resistant paint
  • DIAL: Steel, white background with black markings
  • POINTER: Aluminum, black finish with adjustment feature
  • WINDOW: One-piece threaded acrylic
  • MOVEMENT: Brass
  • DIAPHRAGM CAPSULE: Copper alloy
  • CONNECTION: Brass 1/4-18 low male (LM)
