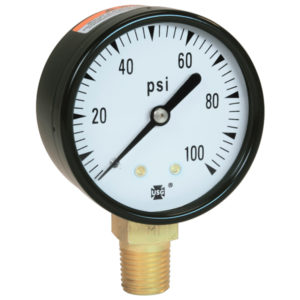

Ametek Low Lead Series P-500 Utility Gauges

Ametek Low Lead Series P-500 Utility Gauges

Ametek Gauges from Automation Service

Low Lead Series P-500 Utility Gauges

Ametek - U.S. Gauge

Low Lead Series P-500 Utility Gauges

Gauges

Description - U.S. Gauge Low Lead Series P-500 gauges adhere to the “Reduction of Lead in Drinking Water Act” enacted by the U.S. Congress January 2011.

U.S. Gauge Low Lead Series P-500 utility gauges provide economical, reliable service in a wide variety of applications including potable water pumps, compressors, and other equipment.

Series P-500 utility gauges come in standard psi ranges with accuracy of ±3-2-3%.

Gauges are available in 1-1/2”, and 2” steel cases in center-back and lower mount configurations. Other sizes, ranges, and mounting configurations are available for OEM quantities.

Specifications
  • SIZES: 1-1/2”, 2”
  • RANGES: 0-30 psi through 0-160 psi
  • ACCURACY: ±3-2-3% (Grade B)
  • BOURDON TUBE: Phosphor bronze
  • WINDOW: 1-1/2” is polycarbonate, 2” is glass
  • MOVEMENT: Brass
  • DIAL: Galvalume
  • POINTER: Aluminum, painted black
  • CASE: Black painted steel
  • CONNECTION: Brass, 1/8-27 NPT for 1-1/2”; 1/4-18 NPT for 2”; center-back or lower mount
