Ametek 562 Series Gauge

Ametek Gauges from Automation Service

Ametek - U.S. Gauge

562 Series Gauges

Gauges

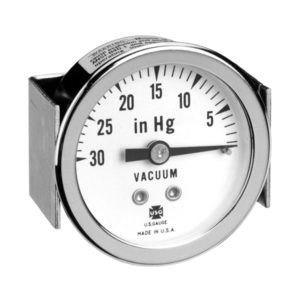

Description - Specially designed to conserve space, these gauges are available for panel mounting and are widely used on medical and dental equipment where panel space is limited.

Available in pressure or vacuum ranges, the 1-1/2" miniature panel mount is the smallest circular gauge available for this use.

A special feature, the breakaway U-clamp, permits adjustment for panel thickness up to 0.14".

Specifications

CASE: Drawn steel with studs, black corrosion-resistant paint, furnished with U-clamp and nuts, zinc plated
RING: Brass, flanged (threaded) chrome plated finish
WINDOW: Polycarbonate
POINTER: Aluminum, black finish
DIAL: Steel, cupped, white background with black markings
MOVEMENT: Brass
BOURDON TUBE: Pressure ranges above 15 psi up to 600 psi are phosphor bronze, soft soldered; Vacuum, 15 psi and ranges 600 psi and above are beryllium copper, soft soldered below 600 psi and silver brazed at 600 psi and above
CONNECTION: 1/8-27 NPT CBM, brass RANGE: 30″ Hg VAC, through 2000 psi ACCURACY: ±3-2-3% of span (Grade B)

Resources

Delivery

All remanufactured products:

2-3 Weeks Standard Delivery
2-5 Days Expedited Delivery
Need it sooner? call us today at 1-800-325-4808

Ametek®

– U.S. Gauge products:

4-8 weeks

Rotork® electric actuators

Please contact us for delivery

Warranty

All remanufactured products are covered by our 2 year service warranty. Please click here to view full warranty.

Ametek® – U.S. Gauge Products are covered by the original manufacturer’s warranty. Please click here for warranty information.

Rotork® Electric Actuators – please contact us for warranty information.

New Foxboro® products are covered by a 1 year service warranty by the original manufacturer.
