Ametek 1785 Manifold Pressure Test Gauge

Ametek Gauges from Automation Service

Ametek - U.S. Gauge

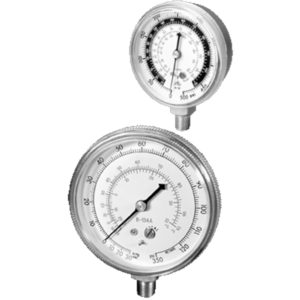

1785 Manifold Pressure Test Gauge

Gauges

Description - Model 1785 2-1/2” Manifold Pressure Test gauges offer several ranges for use with various types of refrigerants, including R-12, R-22, R-502, R-134A, and R-410A.

The gauges can be permanently mounted in cooling systems or used on portable manifolds.

Type CR-1780 is supplied with 350 psi retard scale to accommodate accidental over-pressure.

All gauges feature a one piece polycarbonate ring and window for quick, easy access to internal front adjusting screw for resetting the pointer.

Gauges are available in English, dual scale, or metric only ranges.

Specifications

SIZE: 2-1/2”
CASE: ABS. (P-1785, red; CR-1785, blue)
RING AND WINDOW: Threaded, polycarbonate
POINTER: Aluminum, black finish
DIAL: Steel, white background with black markings. Refrigerant temperature scales in red
MOVEMENT: Brass, silicone treated
BOURDON TUBE: P-1785, CR-1785 – Phosphor bronze
CONNECTION: 1/8-27 NPT LM, brass
RANGES: P-1785: 0-500 psi, 0-800 psi
CR-1785: 30” Hg VAC, 0-120 psi retarded to 350 psi; 30” Hg VAC, 0-250 psi retarded to 500 psi
ACCURACY: ±3-2-3% of span (Grade B), applies to non-retard portion

Resources

Delivery

All remanufactured products:

2-3 Weeks Standard Delivery
2-5 Days Expedited Delivery
Need it sooner? call us today at 1-800-325-4808

Ametek®

– U.S. Gauge products:

4-8 weeks

Rotork® electric actuators

Please contact us for delivery

Warranty

All remanufactured products are covered by our 2 year service warranty. Please click here to view full warranty.

Ametek® – U.S. Gauge Products are covered by the original manufacturer’s warranty. Please click here for warranty information.

Rotork® Electric Actuators – please contact us for warranty information.

New Foxboro® products are covered by a 1 year service warranty by the original manufacturer.
