Product Details

Ametek - U.S. Gauge

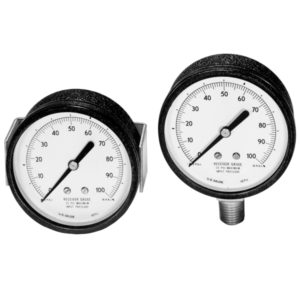

1370 / 1370-U Receiver Gauges

Description - Model 1370, 1370-U Receiver Gauges

Specifications
  • DIAL SIZE: 2”, 2 1/2”, 3 1/2”,
  • CASE: Steel, Black Finish
  • RING/ WINDOW: Threaded, Polycarbonate
  • POINTER: Aluminum, Black Finish
  • DIAL: Steel, white background with black markings. Outer scale marked 3 to15 psi. Inner scale marked in terms ofprocess variable
  • MOVEMENT:
    Brass with Minimum Stop
  • BOURDON TUBE: Beryllium Copper
  • CONNECTION: 1/4-18 ANPT brass
  • ACCURACY: ±2-1-2% of span
Resources

Quote Information

Please fill out the form below and an Automation Service representative will contact you within the hour. All fields are mandatory unless labeled optional.

Delivery

All remanufactured products:

  • 2-3 Weeks Standard Delivery
  • 2-5 Days Expedited Delivery
  • Need it sooner? call us today at 1-800-325-4808

Ametek®

– U.S. Gauge products:

  • 4-8 weeks

Rotork® electric actuators

  • Please contact us for delivery

Warranty

All remanufactured products are covered by our 2 year service warranty. Please click here to view full warranty.

Ametek® – U.S. Gauge Products are covered by the original manufacturer’s warranty. Please click here for warranty information.

Rotork® Electric Actuators – please contact us for warranty information.

New Foxboro® products are covered by a 1 year service warranty by the original manufacturer.
