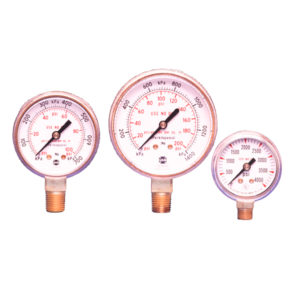

P-600 Series Welding and Compressed Gas Gauges

Ametek - U.S. Gauge

P-600 Series Welding and Compressed Gas Gauges

Gauges

Description - The high pressure gauges are used for measuring cylinder or tank pressure. The low pressure gauges are used on the downstream side of the regulator to indicate regulated, reduced pressure.

The low pressure gauges (30 psi to 1499) are UL 252A recognized, Class V (3000 psi test pressure) and above. High pressure gauges are UL 404 listed. Cleanliness for all gauges is in accordance with Level IV of ASME B40.100-1998.

U.S. Gauge compressed gas gauges are available in 1-1/2”, 50 mm, 2”, and 2-1/2” inch sizes with polished brass, gold painted steel or ABS cases, depending on your requirements.



Specifications
  • SIZE: -1/2”, 50 mm, 2”, and 2-1/2”
  • CASE: Polished brass, brass painted steel, or brass plated ABS
  • MODEL: (1-1/2”, 2”, and 2-1/2”)
    • P-601 – Brass case, high pressure
    • P-612 – Brass case, low pressure
    • P-607 – Steel case, high pressure
    • P-618 – Steel case, low pressure
    • P-605 – ABS case, high pressure
    • P-616 – ABS case, low pressure (50 mm)
    • P-697 – Steel case, high pressure
    • P-698 – Steel case, low pressure
  • RANGES:
    • High Pressure (Models P-601, P-607, P-605, or P-697) 1500 psi, 2000 psi, 3000 psi, and 4000 psi
    • Low Pressure (Models P-612, P-618, P-616, or P-698) 15 psi, 30 psi, 60 psi, 100 psi, 160 psi, 200 psi, 400 psi, 600 psi, and 1000 psi UL
    • High Pressure (Models P-601, P-607, P-605, or P-697) UL 404 listed
    • Low Pressure (Models P-612, P-618, P-616, or P-698) 30 psi, 60 psi, and 100 psi UL 252A Class V recognized; 160 psi UL 252A Class VI recognized; 200 psi, 400 psi, 600 psi, and 1000 psi UL 252A Class VII recognized
  • ACCURACY: ±3-2-3% of span (Grade B) CONNECTION: 1-1/2” brass 1/8-27 NPT LM; 2” and 2-1/2” brass 1/4-18 NPT LM Center back mount also available, subject to minimum order quantity
  • BOURDON TUBE: High Pressure (Models P-601, P-607, P-605, or P-697) Phosphor bronze, silver soldered Low Pressure (Models P-612, P-618, P-616, or P-698) 15 psi beryllium copper, 30 psi to 1499 psi phosphor bronze
  • POINTER: Aluminum, black finish
  • DIAL: Steel, white background with black markings Major graduations and “USE NO OIL” in red Custom dials and dual scales available with minimum order quantity and dial set-up charge
  • WINDOW: One-piece twist on polycarbonate
  • MOVEMENT: Brass
